Stem desk lamp

A printed lamp that assembles without tools

The lamp switched on; printed parts in PETG with the joint knobs in yolk.
The lamp switched on; printed parts in PETG with the joint knobs in yolk.

A 31-part desk lamp that reaches 403 mm across a desk, fourteen parts printed in PETG and three M4 joints tightened by hand with printed knurled knobs. Every part has an orientation where no overhang exceeds 45°, so the whole lamp prints without supports.

Height to head joint276 mm
Reach403 mm
Base170 mm diameter × 24 mm
Parts31 (14 printed)
Assembled mass2.73 kg (2.23 kg of it ballast)
Tipping margin2.17× at full reach
MaterialPETG
Armsone part each
Joints3 × M4
Supportsnone required
Print time36 h for all 14 printed parts
Filament397 g PETG (sliced
Longest part256 mm

The brief

A lamp someone could download, print at home and put together on a kitchen table: no support material to cut away, no press-fit that needs a mallet, and no tools beyond your hands. That rules out a lot of shapes before the design even starts.

Designed for the printer, not in spite of it

Each arm is a single part, 230 mm and 165 mm between pivots: a flat blade at each pivot that swells into a 24 mm round section with a 3 mm wall, oriented so the layer lines run along the load rather than across it. Each of the three joints is an M4 bolt through a printed tongue-and-fork with 0.3 mm clearance per side, which is the gap that stays free after a normal FDM print without post-drilling.

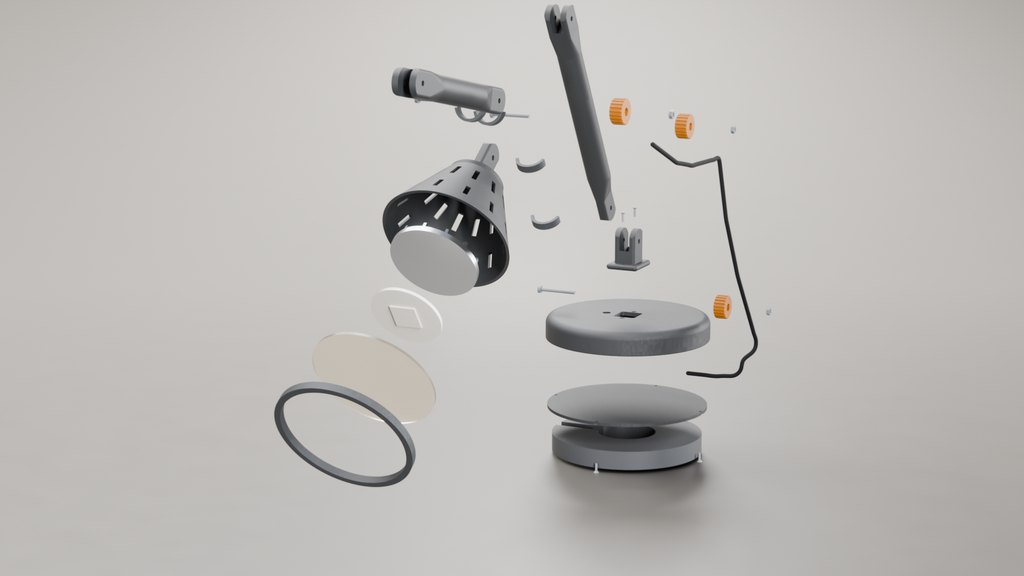

All 31 parts, with the head internals dropping out through the shade opening.
All 31 parts, with the head internals dropping out through the shade opening.

It has to stand up, not just look right

A 403 mm reach off a 170 mm base is a cantilever with nothing counterbalancing it. The first version weighed 466 g and put its centre of mass 204 mm out — almost three times past the rim — so it simply fell over. The base carries a 2.23 kg cast-iron ballast ring instead, and the assembly is rebuilt at five poses across its range and weighed part by part: the centre of mass never gets past 39 mm, a 2.17× margin at full reach, with no two parts touching in any pose.

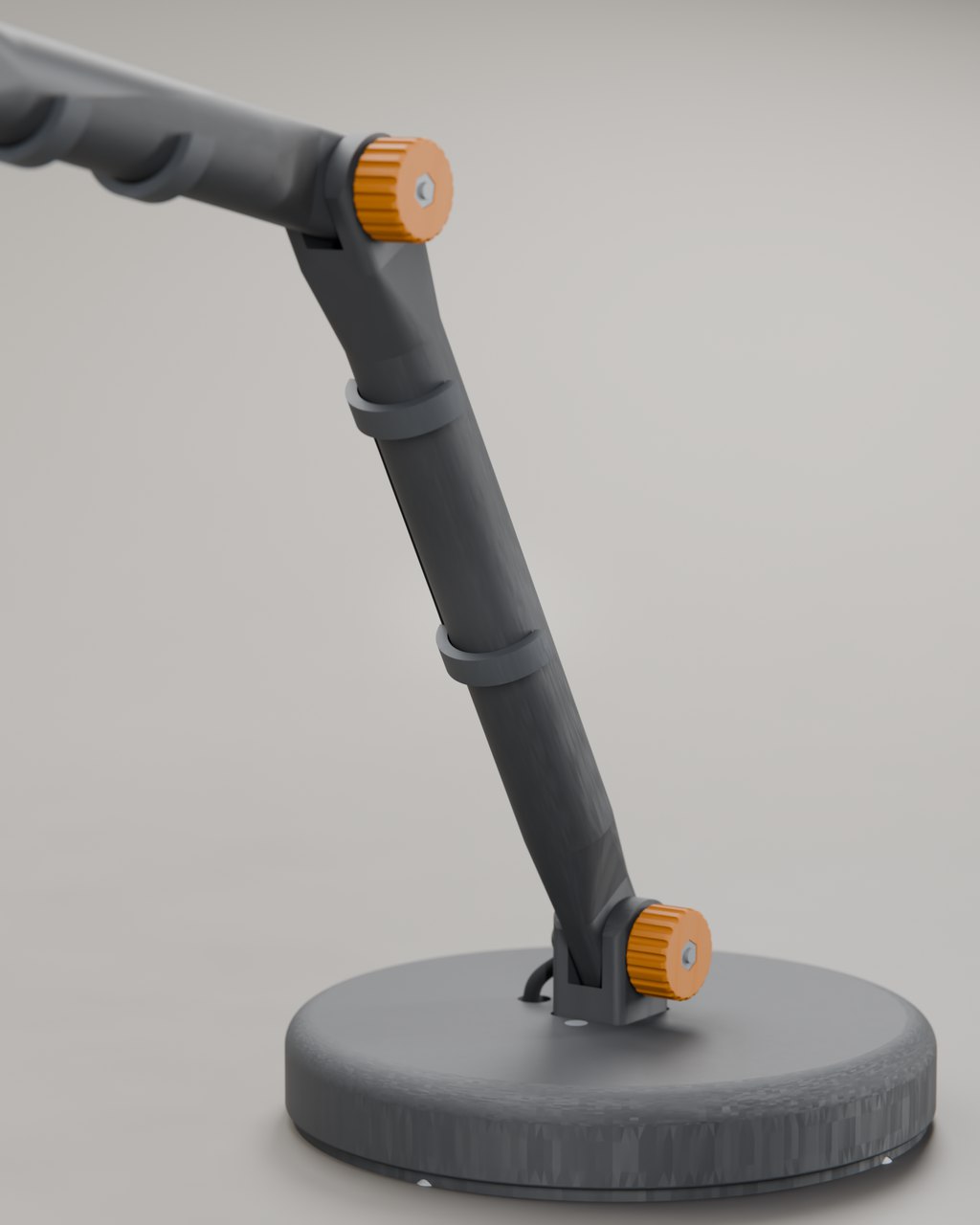

A joint at close range, showing the knurled knob, the M4 bolt and the layer lines.
A joint at close range, showing the knurled knob, the M4 bolt and the layer lines.
Elevation, showing the reach and the shade geometry.
Elevation, showing the reach and the shade geometry.

The head

A 64 mm LED module sits on an 80 mm aluminium heatsink with twelve fins, and a printed bayonet ring twists on to hold a 112 mm diffuser. The shade is a 118 mm to 56 mm cone with a 2.4 mm wall, printed mouth-down so its outer surface never meets a support.

Numbers from an actual slice

Every printed part was run through the slicer rather than estimated: 36 hours and 397 g of PETG for the full set at 0.2 mm layers and 25% infill, with no support material anywhere, sliced from watertight meshes rather than from the render meshes. The slice also caught something the CAD did not: the lower arm is 256 mm long, so it will not fit straight on a 250 × 210 bed and has to be printed across the diagonal. That belongs in the build instructions, not in a surprise.

What you receive

Print-ready STL and 3MF for every printed part with its orientation noted, STEP and 3DM for the whole assembly, an exploded view, a bill of materials covering the three M4 bolts, the LED module, the heatsink and the cable, and the slicer report those numbers come from.
